Product manual ：

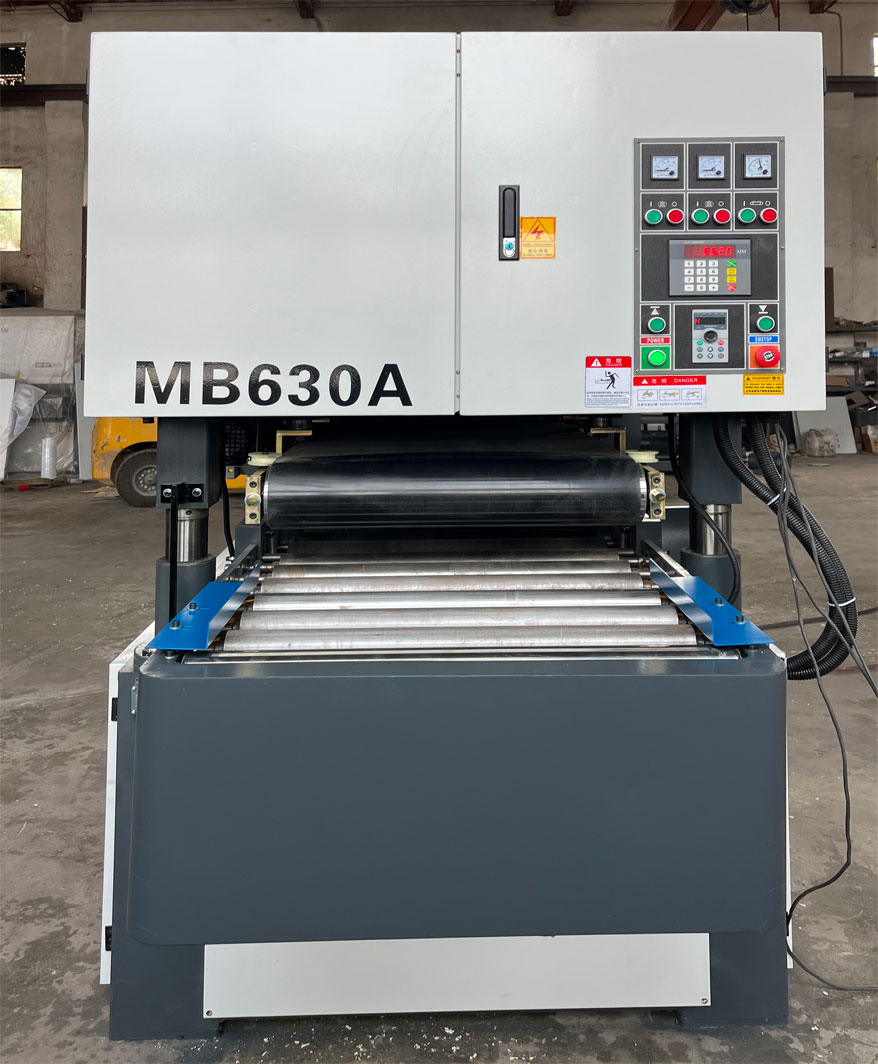

The structure of this type of machine body is reasonable, the noise is small, the shock-absorbing function is strong, the firm welding and the total quality ensure the smooth running of thequipment.
This product is suitable for fixed thickness sanding and surface polishing of wood boards, integrated boards, blockboards, chipboards, composite flooring, plywood, etc.
With fault display, easy maintenance, in case of sudden power failure, the conveyor bed will automaticaHy drop to achieve the protection of equipment and workpieces.
Product parameter ：
| Maximu processing with | 630mm |
| Min Working Length | 350mm |
| Working Thickness | 3-100mm |
| Total Motor Power | 49.5kw |
| FeedIing Speed | 4-28m/min |
| Abrasive Belt Size | 650*1930mm |
| Working Air Pressure | 0.6~0.8Mpa |
| Air Consumption | 12m³/h |
| Volume of Dust Collection Device | 8500m³/h |
| Overall Dimensions | 1260*1660*1960mm |
| Net Weight | 2200kg |
